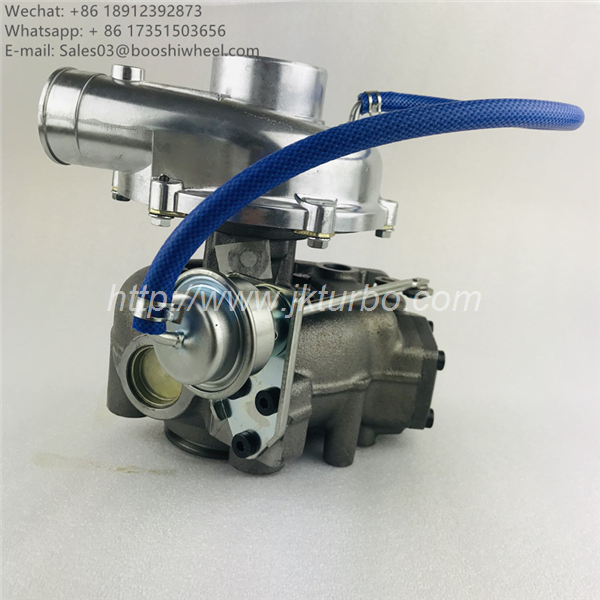

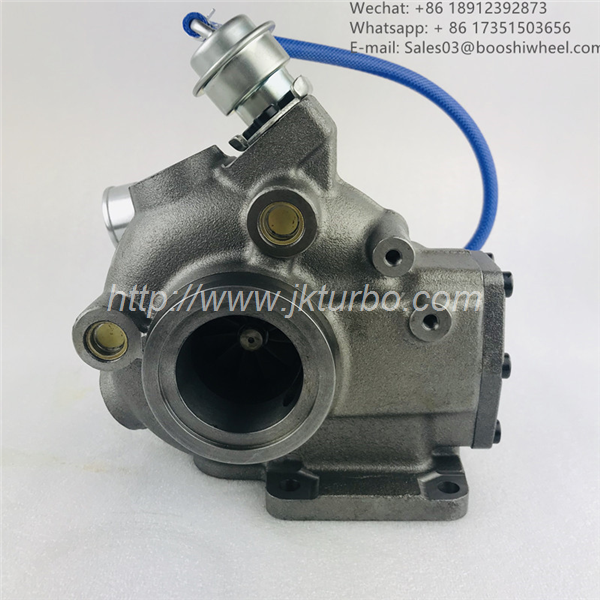

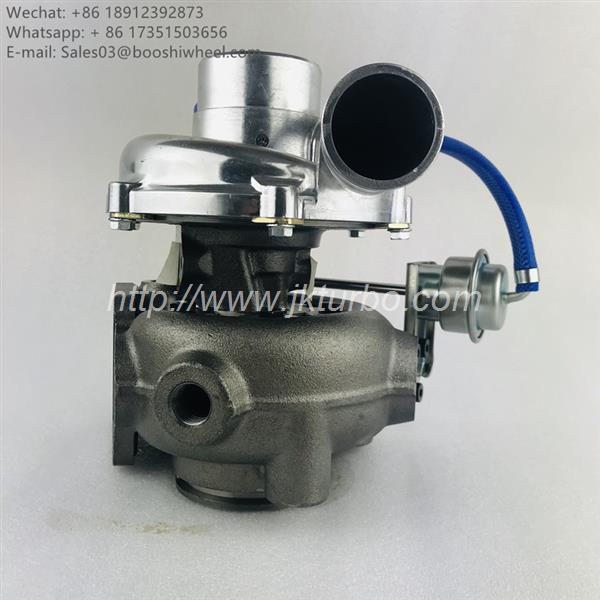

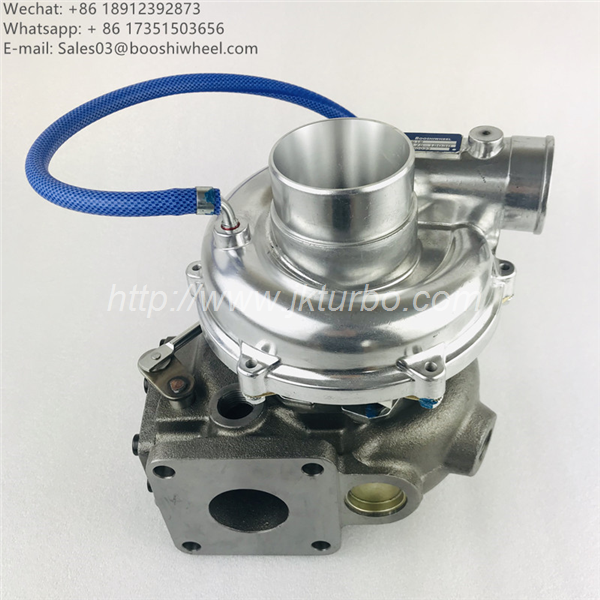

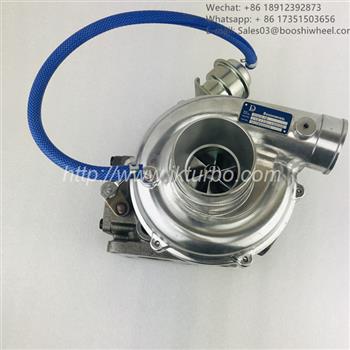

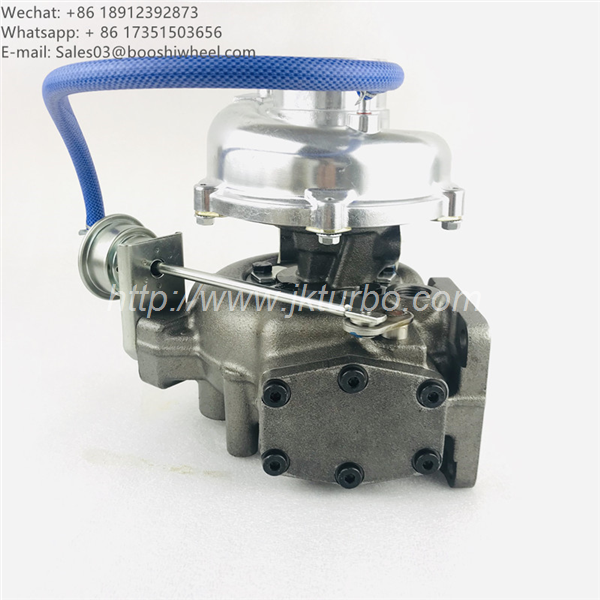

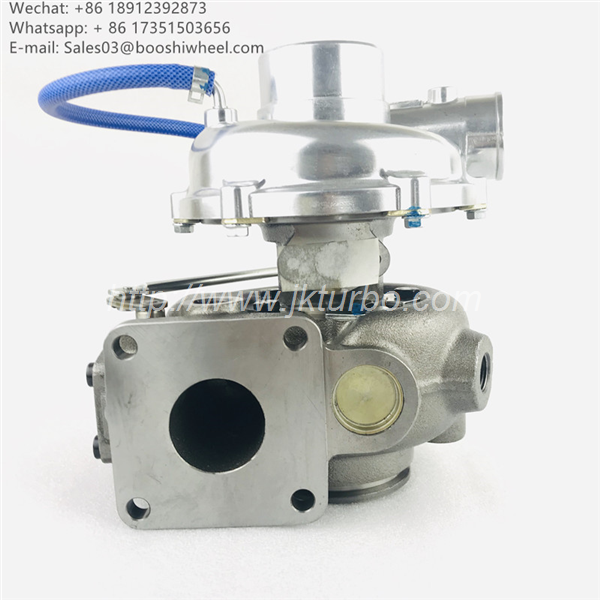

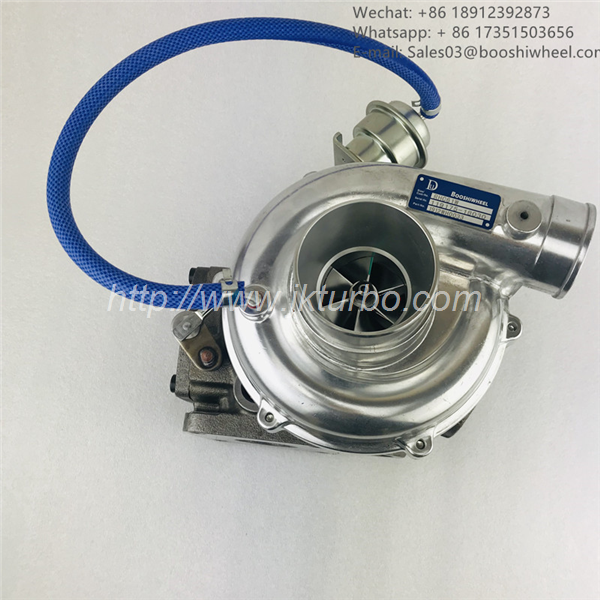

MYDA RHC61W turbocharger 119175-18030 119175-18031 VB240090 VC240090 turbo for Yanmar Marine with 4LHA-STE Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	VD240090
Previous Part Number	VA240090, VB240090, VC240090
OE number	119175-18031, 119175-18030, 11917518031, 11917518030, C61CAD-S0090B, C61CAD-S0090G, C61CADS0090B, C61CADS0090G
Description	Marine
CHRA	NZ854798 (NZ870535) $448.00 NEW IN STOCK, MADE IN USA
V-SPEC.	MYDA
Turbo Model	RHC61W-1063P16NWBRLL4715CCZ
Engine	4LHA-STE, STE-4LHA, 4LHA-STZE-YA
Displacement	3.5L, 3456 ccm
Power	230 HP
Fuel	Diesel
Angle α (compressor housing)	70º
Angle β (turbine housing)	182º
Bearing Housing	NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) $143.52 NEW IN STOCK
Turbine Wheel	NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) $106.80 NEW IN STOCK
Comp. Wheel	NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) $125.90 NEW IN STOCK
Back plate	NN193012 (171124) $18.55 NEW IN STOCK
Heat shield Number	NH163329 (171056) $14.82 NEW IN STOCK
Repair Kit	NH169843 (509T-538)(171079) $129.00 NEW IN STOCK
Turbine Housing (Water-Cooled)	NH167595
Compressor Cover	NH164718
Turbine Housing AR	16
Actuator	NH961640 (NH961641)
Installation Kit	$79.00
Gasket (turbine Outlet)	128300-13230
Gasket (oil outlet)	210161 (128300-1323)(Gasket paper) $2.00
Manufacturer	IHI
Condition	Rebuilt

Applications

1998-01 Yanmar Marine with 4LHA-STE Engine
