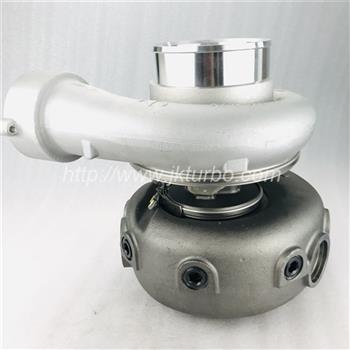

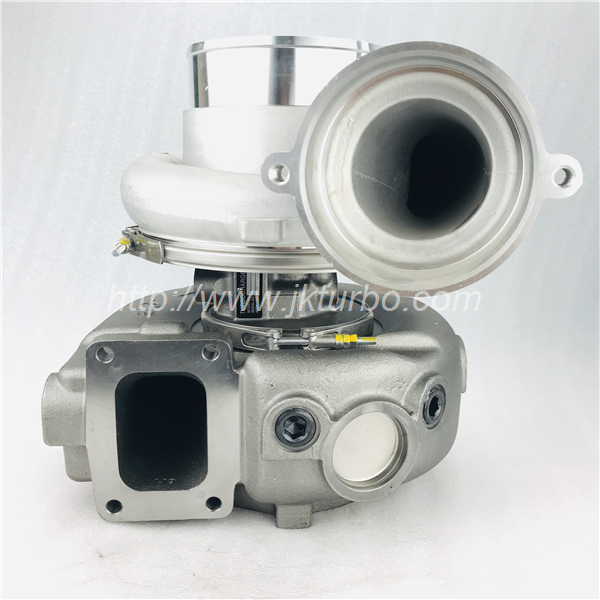

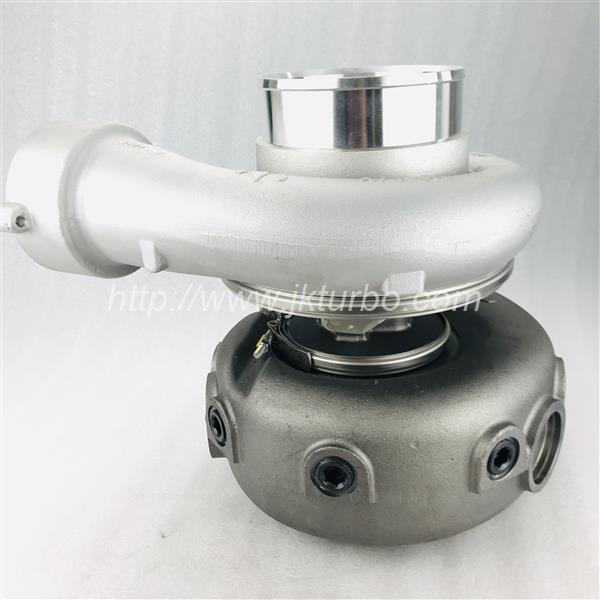

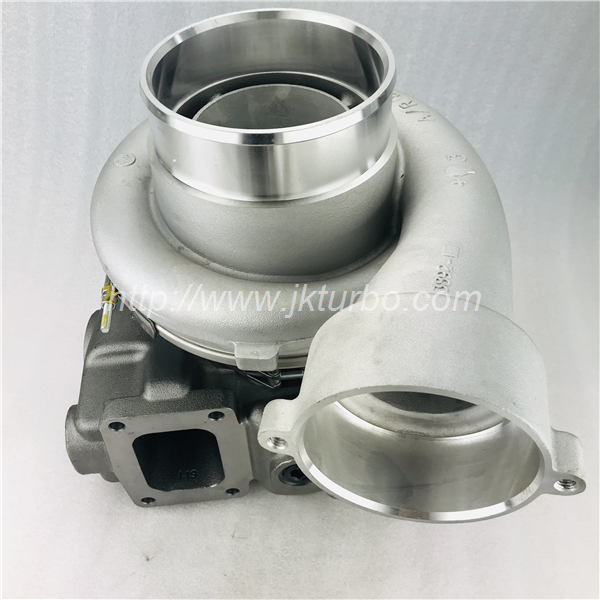

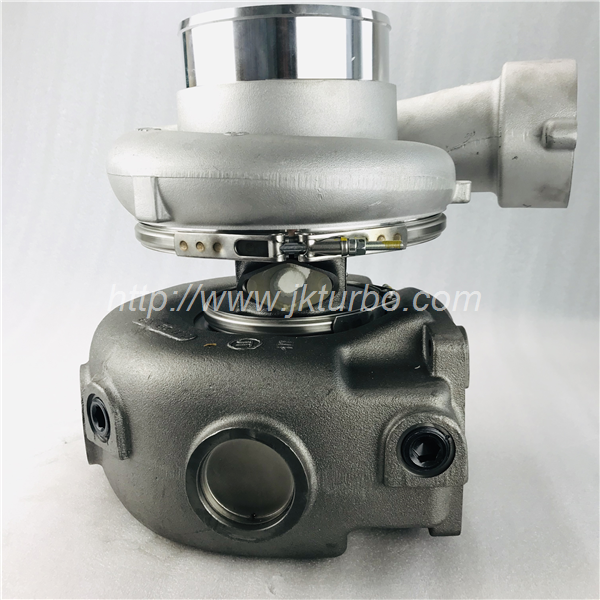

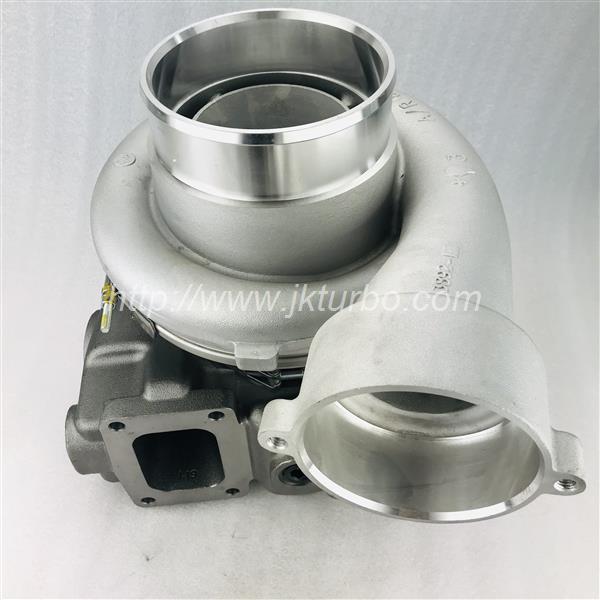

卡特船机Caterpillar Ship TW85 471111-5001S 131-8687 0R-7094 1318687 涡轮增压器

卡特船机Caterpillar Ship TW85 471111-5001S 131-8687 0R-7094 1318687 涡轮增压器

Product Description

Part Number	471111-5001S
Previous Version	471111-0001, 471111-1, 471111-9001
OE number	131-8687, 1318687, 0R-7094, 0R7094
Description	Ship, Marine
CHRA	449530-0016 (449530-5016S, 1318688, 0R7094) $1,945.05
Turbo Model	UTW8501
Engine	3408E
Engine Marine	3406E
Engine Manufacturer	Caterpillar
Displacement	14600 ccm, 6 Cylinders
KW	450/550 HP
Fuel	Diesel
RPM	2300
S/N	9WR00001-UP
Bearing Housing	449072-0001 (Oil Cooled) $252.10 NEW IN STOCK
Turbine Wheel	449587-0001 (Ind. 111.45 mm, Exd. 97.1 mm, 11 Blades) $242.30 NEW IN STOCK
Comp. Wheel	441831-0017
Back plate	442732-0005 $98.93 NEW IN STOCK
Heat shield Number	409794-0002 (407657-0008)(4P6527) $65.01 NEW IN STOCK
Repair Kit	711494-0001 (468267-0010)(176-4259, 125-5375)(1101085750) $188.40 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0204 (1318689, 23506458) $2007.35 NEW IN STOCK
Compressor Cover	443892-0031 (1318690) $608.97
Turbine Housing AR	1.03
Plug-Cup (Standard)	3B0645 $3.87
Plug-Cup (Standard)	4N0932 $5.96
PLUG-CUP (Optional)	3P1896 $4.89
Plug-Cup	1006816 $5.43
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835) $13.20
Gasket oil inlet	129119 (201049, 210019-0000, 409266-0003, 409266-0004) $4.22
Gasket (oil outlet)	210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
LISTED	$5963.21
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Ship with 3406E Engine

RHF4	VB420081	135756180	Cat 247
S200	169590	145-6091
E110	517585	4D31
E110B	517903	F4K
E120	517903	6D114
E120B	49168-00330	S4K
CAT225	4N6858	3304
E240	518122	6D15
E240B	49168-01202	3116
E200B	49179-00451	F6K
E312B	ME518122	S4K
E320	49179-02260	S6K
	ME517952
E320B	49179-00230	3306
	ME518018
E320C	49179-02340	S6K
E325		3116
E325B		3116
E325C	177-0440	3116
E330		3306
E330B	219-1909/	3306
	106-7407
E330C风冷	191-5094	3306
E330C水冷		3306
E330D风冷	216-7815	C9
S310C	250-7700	13809880113	330D LHP, HHP Excavator
GTA4088S	252-4590 252-4589 252-4588	752538-0005
GTA4702B	239-5583	743279-0004
GTA4502S	247-2964	762548-5004
CAT345B	1W3892 1W3897 247-2969 1355392	471086-0002	4LF302
CAT345B	720538-5002	196-2776 0R7910
GTA5008BS	239-9988	750058-5001	C15 Engine
	345-7243	750863-0006
S310G	267-8658	266-0195 238-8685
GTA5518B	296-7632	751286-0021
GT500201B	148-9102 0R7234 153-0703	701756-0001	卡特988G 836 3406E
GT500201B	196-5946 0R7921	701756-0001	卡特3456 773E
E350		3306
E90/950B	4N6859	3304
D6D	6N7924	3306
D7G	4N9544	3306
966D	1W9383	3306
D8K	6N7203	D342
TV8106	6N-7958/7N-2495/7N1758	465048-0002	CAT3508/D9H/
D5H	7N4651	3304
D5	3306	D333C
3406	7C6609
3306		219-9710
3306	7N2515	4LF302
3412	7C2485
GT4294	172743	714788-5001	truck
	23522189	2352805
	23528065	714788-1
TF035	49135-03320		CAT 307
	2674A256	10709880002
TW8107	7W4866	465052-0003
BTV8501	466807-5001	10R-0435	Turbo Caterpillar Generator Set
S300W	174404	2419059
