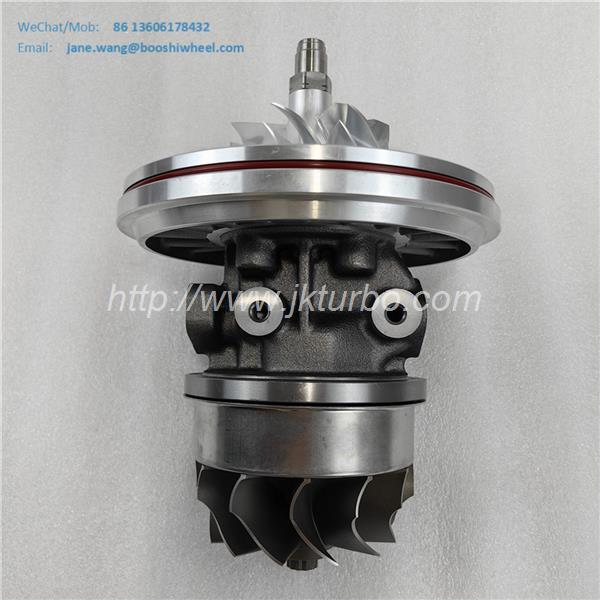

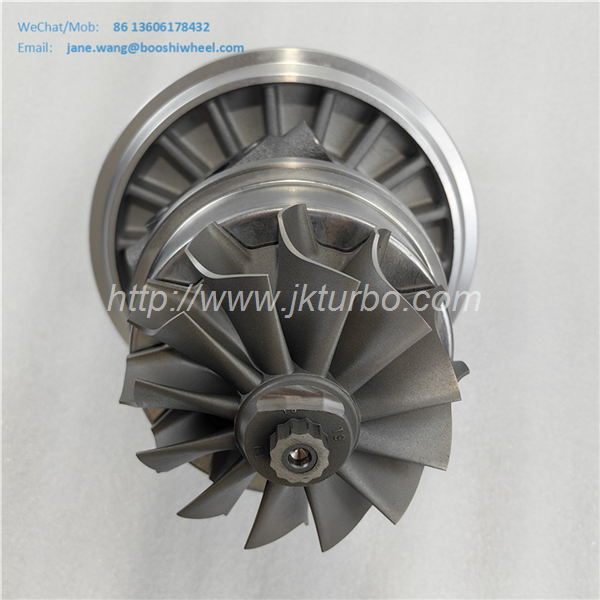

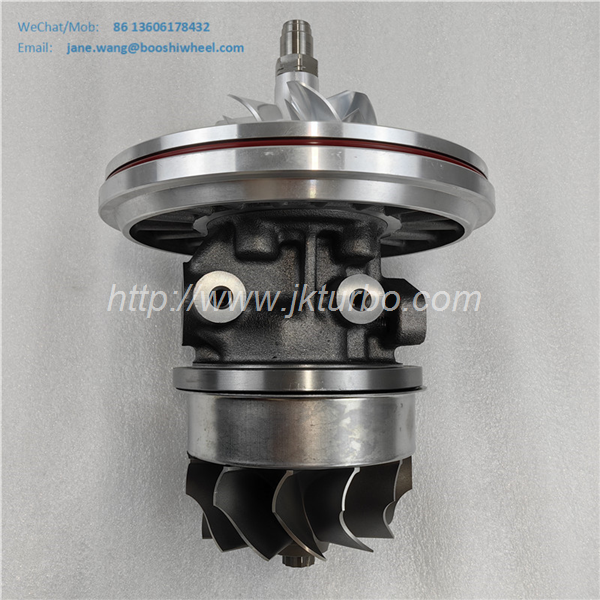

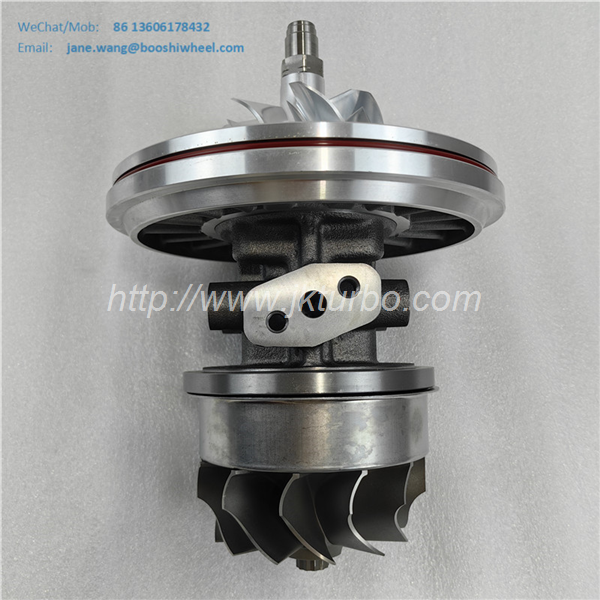

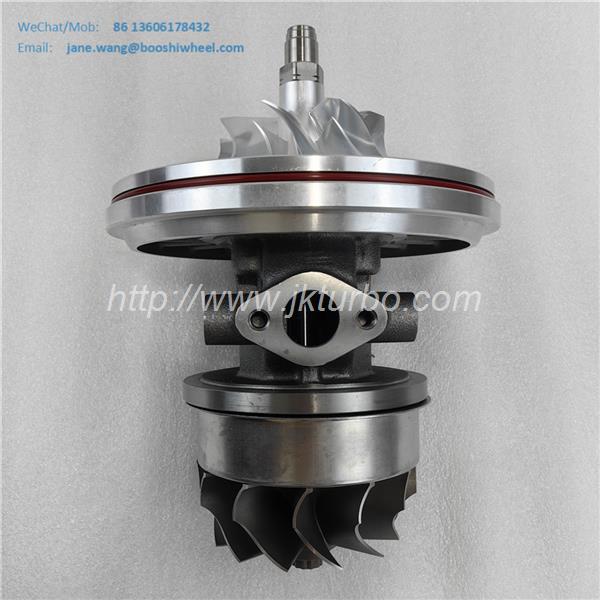

K42 cartridge 53429886913 53429706913 5342-970-6913 5342-988-6913 5342 988 6913 turbo core chra for MTU-DDC Marine, Ship with 16V2000M91 Engine Right Side

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	53429886913
Previous Part Number	5342-988-6913, 5342 988 6913
OE number	0070969099, 007 096 9099, 007 096 90 99, X00036208
Description	Marine, Ship, Right Side
Manufacturer Part Number	53429706913, 5342-970-6913
CHRA	53427100025 (5342-710-0025) $1,703.02
Turbo Model	K42-5469OODKB25.61GAAXB
Engine	16V2000M91, 16V2000M90
Engine Manufacturer	MTU
Displacement	31.86L, 31860 ccm
KW	1471/2000
RPM Max	2300
Fuel	Diesel
Angle α (compressor housing)	51º
Angle β (turbine housing)	18º
Bearing Housing	53421500002 (Oil Cooled) $525.00 NEW IN STOCK

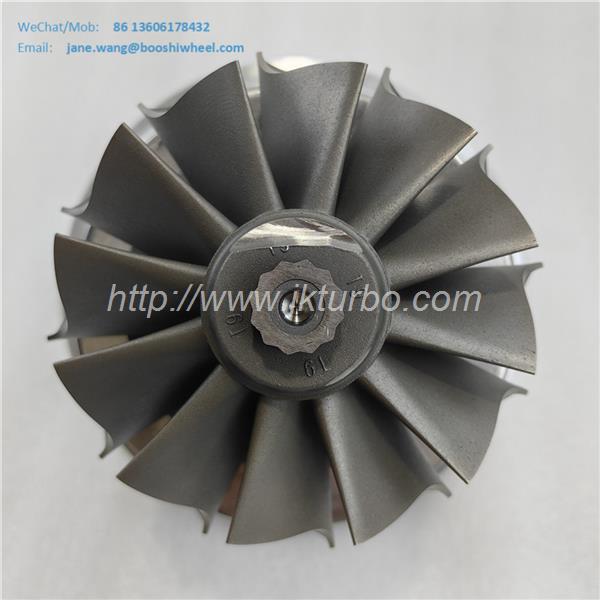

Turbine Wheel	53421205003 (Ind. 106.58 mm, Exd. 126.27 mm, 12 Blades) $1,721.69 NEW IN STOCK

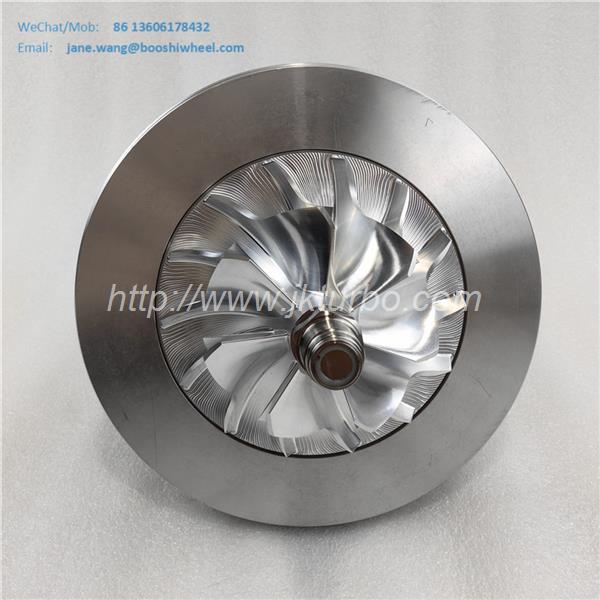

Comp. Wheel	53421232032 ()(Ind. 93. mm, Exd. 136.52. mm, 7+7 Blades, Superback) NEW IN STOCK
Back plate	53421515725 (53421515798) NEW IN STOCK
Heat shield Number	53421652002 $308.74 NEW IN STOCK
Repair Kit	53427110009 (53427110016) $485.97 NEW IN STOCK
Turbine Housing	53421007402 (53421017471) $2965.28
Compressor Cover	53421003006
Turbine Housing AR	25
Waste gate valve	58061100216 $799.08
Gasket	58061183406 $40.91
NOTE	Intercooler, Magnetic Shaft Nut
Manufacturer	Borg Warner - 3K - Schwitzer

Applications

2001-06 MTU-DDC Marine, Ship with 16V2000M91 Engine Right Side
