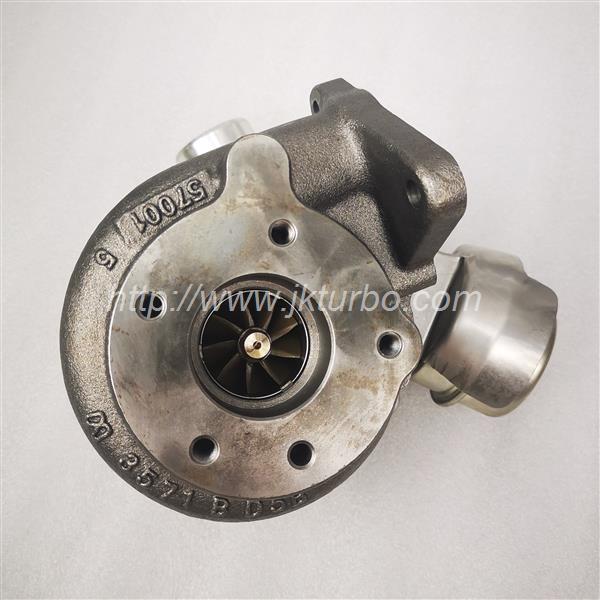

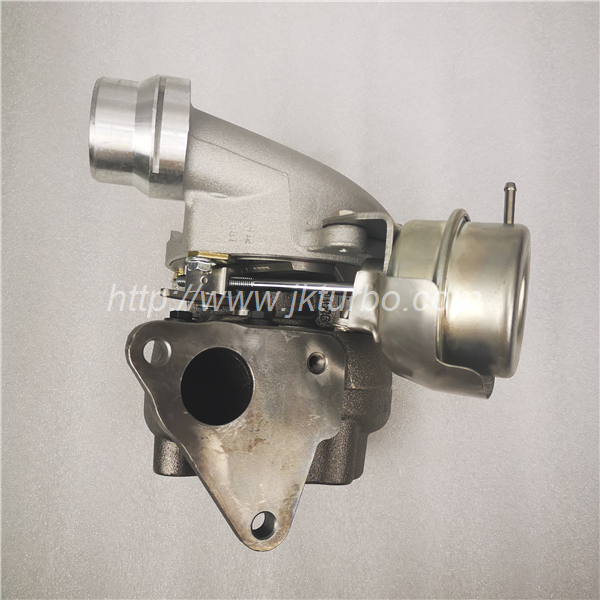

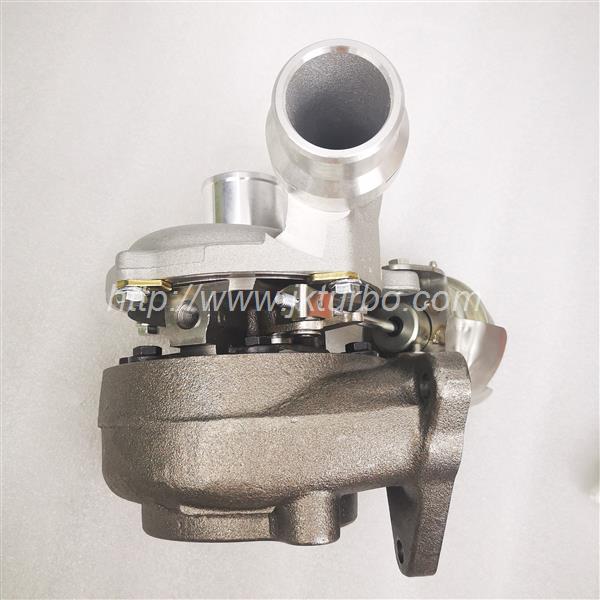

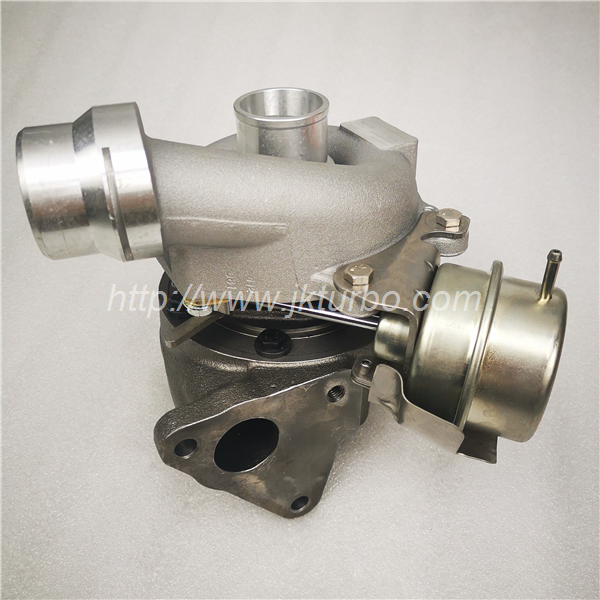

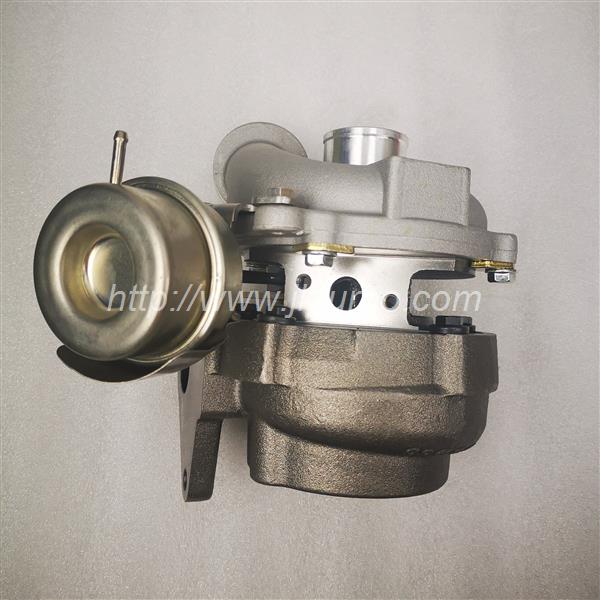

尼桑 BV39 54399880030 54399980070 8200405203 涡轮增压器

Product Description

Part Number	54399980070
Previous Version	5439-998-0070, 5439 998 0070, 54399700070, 54399880030, 54399880070, 54399980030, 7711368560, 8200405203, 8200507856, 8200625683, 8200578381, 7701476883
OE Number	8200405203, 8200507856, 7701476183, 8200625683, 14411-00Q0F, 1441100Q0F
Description	Nissan Quashqai, Renault Megane
Manufacturer Part Number	54399700070, 54399700030, 5439 950 0070, 5439 960 0070, 5439 970 0070, 5439 971 0070, 5439-950-0030, 5439-960-0030, 5439-970-0030, 5439-971-0030, 5439-980-0030

Turbo Model	BV39-1867DCG426.18AVAXC, BV39-1867DCG/426.18, BV39-1867DCG426.18AVAXH, KP39-070, KP39A-070
Engine	K9K-Euro 4 (VTG)
Engine Manufacturer	Nissan
Displacement	1.5L, 1461 ccm
KW	80/103
Fuel	Diesel
RPM Max	4000
Angle α (compressor housing)	251/272.5º
Angle β (turbine housing)	301.5 /298.5º
Bearing Housing	54431504006
Turbine Wheel	N/A
Comp. Wheel	54431232037 (Deep Superback, Extended Tip)
Back plate	54431523005A (Insert) KP35 Deep Superback (54359700011/0033)
Heat shield Number	54391652001
Repair Kit	N/A
Turbine Housing AR	VTG
Gasket (turbine inlet)	210893
Gasket (turbine outlet)	210894
Gasket (oil outlet)	210243
NOTE	Intercooler, VTG, restricted to Renault
