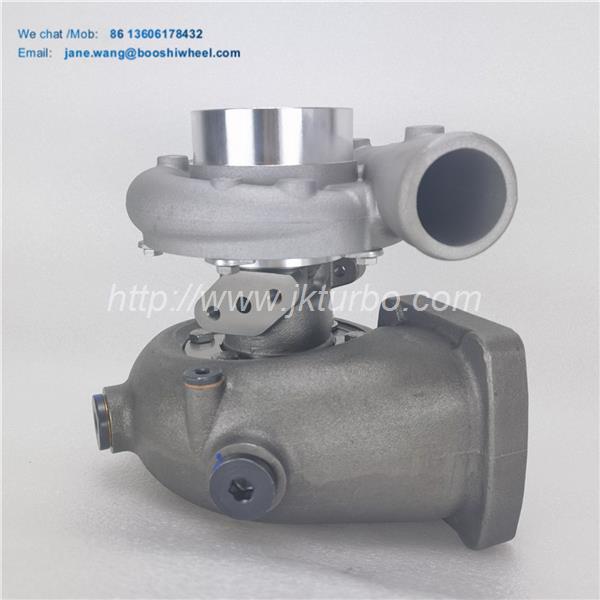

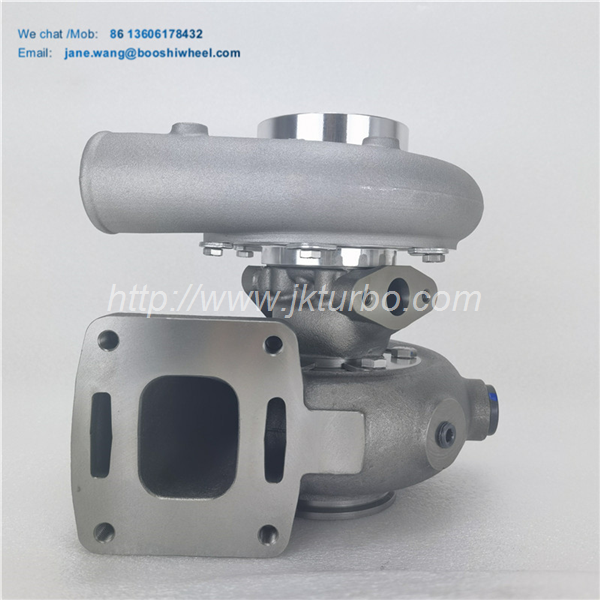

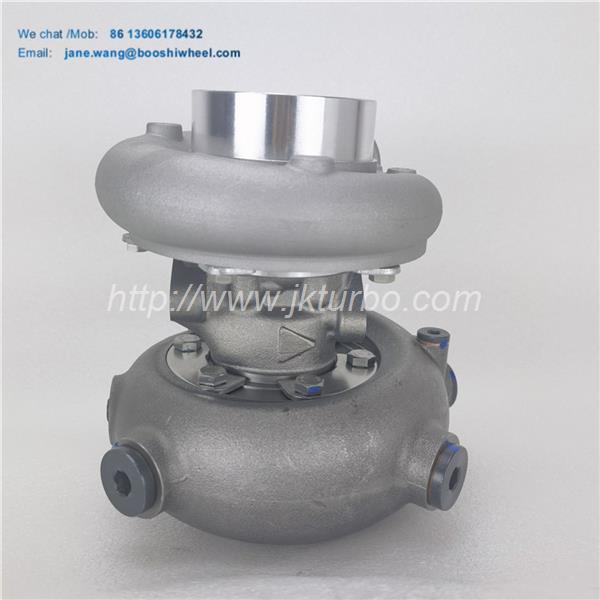

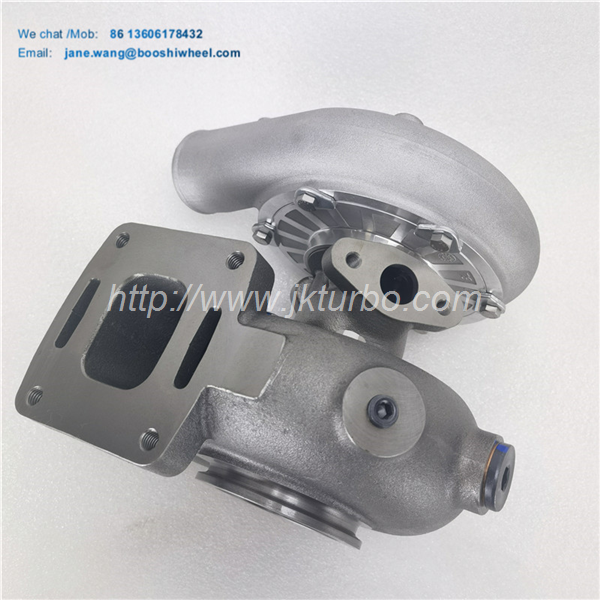

S200W turbo 319034 35242100 35242100F 35242183F 12679700000 12679880000 1267-988-0000 1267 988 0000 turbocharger for VM Ship with MD706L Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	319034
Previous Version	12679880000, 1267-988-0000, 1267 988 0000
OE number	35242100, 35242100F, 35242183F
Year	2002-
Description	VM Motor Mercruiser/Marine, Ship
Manufacturer Part Number	318789, 12679700000, 1267-970-0000
CHRA	319035 $981.65 NEW IN STOCK
Turbo Model	S200W
Engine	MD706L
Displacement	4.16L, 4160 ccm
KW	223/300 HP
RPM Max	2400
Fuel	Diesel
Angle α (compressor housing)	245°
Angle β (turbine housing)	315°
Bearing Housing	317242 (Oil Cooled) $369.75 NEW IN STOCK
Turbine Wheel	318925 (Ind. 57.6 mm, Exd. 66. mm, 11 Blades) NEW IN STOCK
Comp. Wheel	169937 (Ind. 51.11 mm, Exd. 80. mm, 7+7 Blades, Superback) $174.69 NEW IN STOCK
Back plate	167997 (306010011) $22.94 NEW IN STOCK
Repair Kit	318382 (315565, 318383)(1253200750) $97.60 NEW IN STOCK
Turbine Housing (water-cooled)	318924
Compressor Cover	318922 $224.71 NEW IN STOCK
Gasket (turbine inlet)	312617 (409039-0001, 210190-0000, 132044) $13.20
Gasket (oil outlet)	311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021)(1900000027) $3.32
Gasket (oil inlet)	147837 (409036-0000, 409026-0001, 409266-0001, 210023-0000, 3755739, 3709737, 3500681, 3519762, 55739, 210023)(1900000037) $4.48
Manufacturer	Borg Warner - 3K - Schwitzer

Applications

2002- VM Ship with MD706L Engine
