new model TW7302 23503908 R23503908 turbocharger 465987-5001S 465987-5001 465987-5001S 465987-9001 465987-9001S 4659870001 4659875001 4659875001S 4659879001 4659879001S 465987-1 turbo for Marine Engine 6L71TI 8V92TA

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	465987-5001S
Previous Version	465987-5001, 465987-5001S, 465987-9001, 465987-9001S, 4659870001, 4659875001, 4659875001S, 4659879001, 4659879001S, 465987-1
OE number	23503908, R23503908
Description	Marine
CHRA	442032-0024 (442032-9024S)(23504211, R23504211) $1,433.56 NEW IN STOCK, MADE IN USA
Turbo Model	TW7302
Engine	6L71TI, 8V92TA
Displacement	12100 ccm, V8 Cylinders, 7000 ccm, 6 Cylinders
KW	559/771 HP
RPM Max	1800
Fuel	Diesel
Angle α (compressor housing)	340º
Angle β (turbine housing)	138º
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled) $206.08 NEW IN STOCK
Turbine Wheel	442029-0020 (23502111)(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel	441829-0002 (8925745, 4P3815)(447033-0003)(Ind. 75.36mm, Exd. 102.25 mm, 6+6 Blades, Superback) $92.80 NEW IN STOCK
Back plate	442027-0001 (8925746) $154.46 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK

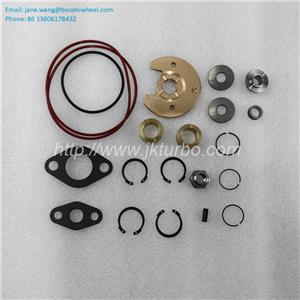

Repair Kit	468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0201 (23504212) $1,981.86 NEW IN STOCK
Compressor Cover	441880-0001 (8925753) $481.75 NEW IN STOCK
Turbine Housing AR	1.03
Gasket oil inlet	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) (Paper) $4.48
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket (turbine inlet)	210255 (Copper layers)
NOTE	Partially restricted
Manufacturer	Honeywell-Garrett, BTW USA

Applications

Detroit Diesel Marine with 6L71TI Engine

1989- Detroit Diesel Marine Engine (Pleasure Craft) with 8V92TA Engine

Part Number	465987-5001S
Previous Version	465987-5001, 465987-5001S, 465987-9001, 465987-9001S, 4659870001, 4659875001, 4659875001S, 4659879001, 4659879001S, 465987-1
OE number	23503908, R23503908
Description	Marine
CHRA	442032-0024 (442032-9024S)(23504211, R23504211) $1,433.56 NEW IN STOCK, MADE IN USA
Turbo Model	TW7302
Engine	6L71TI, 8V92TA
Displacement	12100 ccm, V8 Cylinders, 7000 ccm, 6 Cylinders
KW	559/771 HP
RPM Max	1800
Fuel	Diesel
Angle α (compressor housing)	340º
Angle β (turbine housing)	138º
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled) $206.08 NEW IN STOCK
Turbine Wheel	442029-0020 (23502111)(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel	441829-0002 (8925745, 4P3815)(447033-0003)(Ind. 75.36mm, Exd. 102.25 mm, 6+6 Blades, Superback) $92.80 NEW IN STOCK
Back plate	442027-0001 (8925746) $154.46 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit	468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0201 (23504212) $1,981.86 NEW IN STOCK
Compressor Cover	441880-0001 (8925753) $481.75 NEW IN STOCK
Turbine Housing AR	1.03
Gasket oil inlet	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) (Paper) $4.48
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket (turbine inlet)	210255 (Copper layers)
NOTE	Partially restricted
Manufacturer	Honeywell-Garrett, BTW USA

Applications

Detroit Diesel Marine with 6L71TI Engine

1989- Detroit Diesel Marine Engine (Pleasure Craft) with 8V92TA Engine
