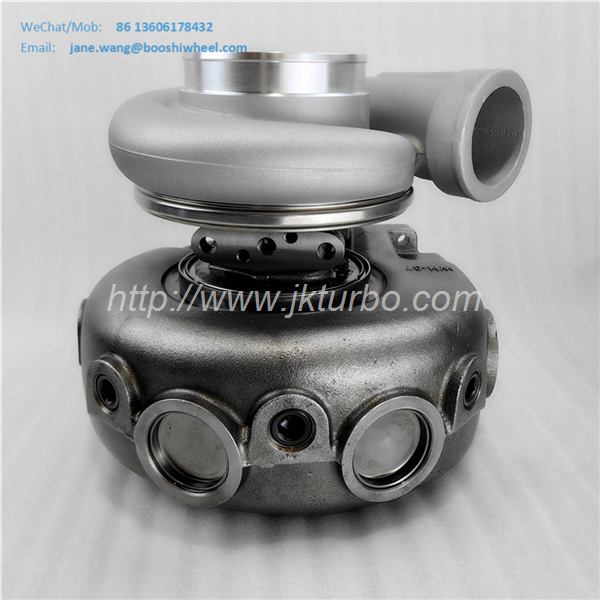

TW7301 turbocharger 465251-5001S 465251-0001 465251-1 23501263 R23501263 turbo for Detroit Diesel Marine with 8V82TA Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	465251-5001S
Previous Version	465251-0001, 465251-1
OE number	23501263, R23501263
Description	Marine
CHRA	442032-0010 (442032-5010S)(23501286, E23501286, R23501286) $996.32 NEW IN STOCK
Turbo Model	TW7301
Engine	8V82TA
KW	735
RPM Max	12.0L, 12062 ccm, 8V Cylinders
Fuel	Diesel
Angle α (compressor housing)	138°
Angle β (turbine housing)	340°
Bearing Housing	442028-0001 (8925742, 08925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel	442029-0003 (8925743, 2950012372943)(Ind. 96.52 mm, Exd. 83.97 mm, 11 Blades)(1101675435) $397.80 NEW IN STOCK
Comp. Wheel	443120-0001 (Ind. 70.9 mm, Exd. 102.3 mm, Trm 48*54, 7+7 Blades, Superback)(23501285) $290.81 NEW IN STOCK
Back plate	442027-0001 (8925746) $154.46 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit	468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0132 (23501605) $1,116.72
Compressor Cover	441880-0008 (23503168) $189.54
Turbine Housing AR	1.19
Gasket oil inlet	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper) $4.48
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket (turbine inlet)	210255 (Copper layers)
Manufacturer	Honeywell-Garrett

Applications

Detroit Diesel Marine with 8V82TA Engine
