378623400H 378623400HX 3786234H turbo charger repair kit

HE500VG turbo repair kit 2836825 5352845 19514480D 23536422 23539062 23539570 2836826 4043261 4045291 turbo kit for Detroit Diesel Engine Various, Fire Truck Series 60

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5352845
Previous Version	19514480D, 23536422, 23539062, 23539570, 2836826, 4043261, 4045291, 4047269, 2836826, 3781169, 3792071, 3798597, 3781169, 3786234, 378623400, 378623400H, 378623400HX, 3786234H
OE number	23539062, 23536422, R23539062, R23536422, 23536802
Description	Detroit Diesel Various, Fire Truck Class 3-8, Truck Kenworth, Peterbilt, Freightliner
Turbo Model	HE531VE
CHRA	4034440 (4034440H)
Engine Manufacturer	Detroit Diesel, MTU Detroit Diesel
Manufacturer Part Number	5329513, 5352845, 5498208, AP80055, 23536422, 23539062, 23536422, 23539062, E23536422, E23539062, E23539570, R23536422, R23539062, R23539570, 3792069, 4047598
Fuel	Diesel
Displacement	14.0L, 14000 ccm
Engine	Series 60 (VGT) on EPA07, MTU Detroit Diesel
SN	1209197011
Fuel	Diesel
Angle α (compressor housing)	194°
Angle β (turbine housing)	90 °
Bearing Housing	(Oil cooled)
Turbine Wheel	4042581 (Ind. 83.99 mm, Exd. 69.97 mm, 12 Blades)(1154055438, 1100016492) $235.90 NEW IN STOCK
Comp. Wheel	4035068 (2836825)(Ind. 65.19 mm, Exd. 98.61 mm, Trm 6.30, 7+7 Blades, Superback) $390.00 NEW IN STOCK

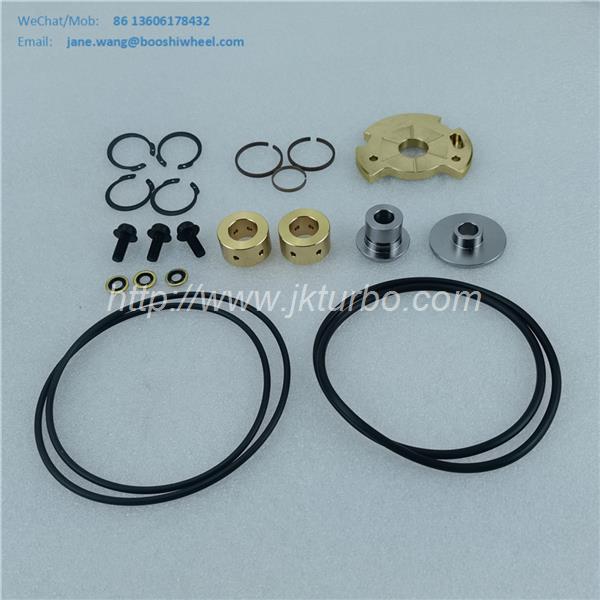

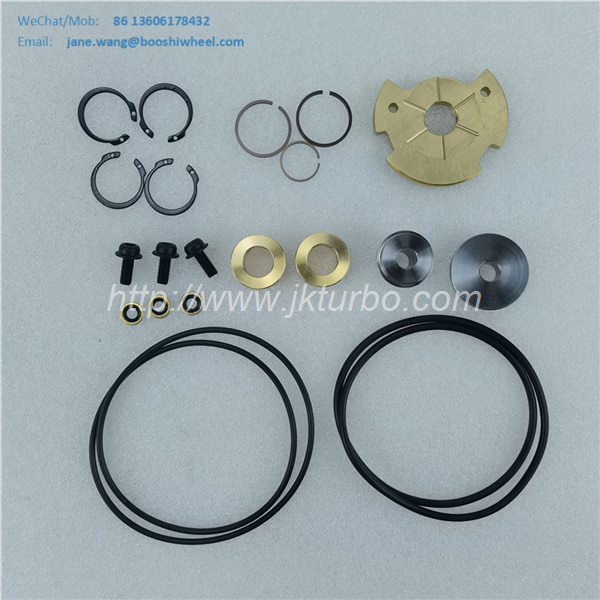

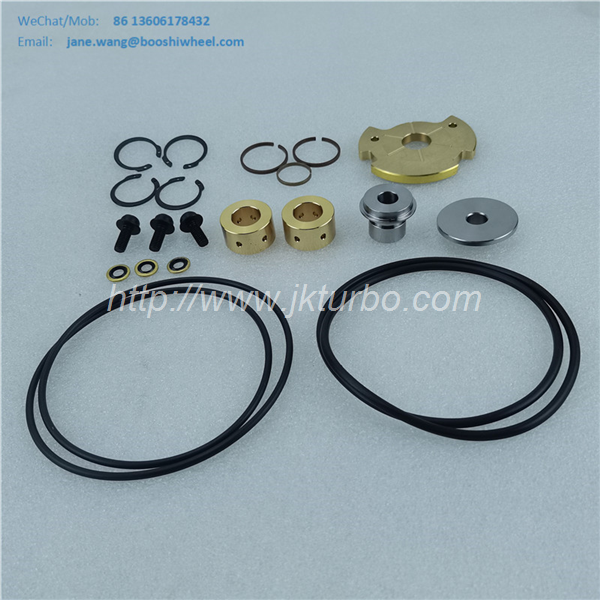

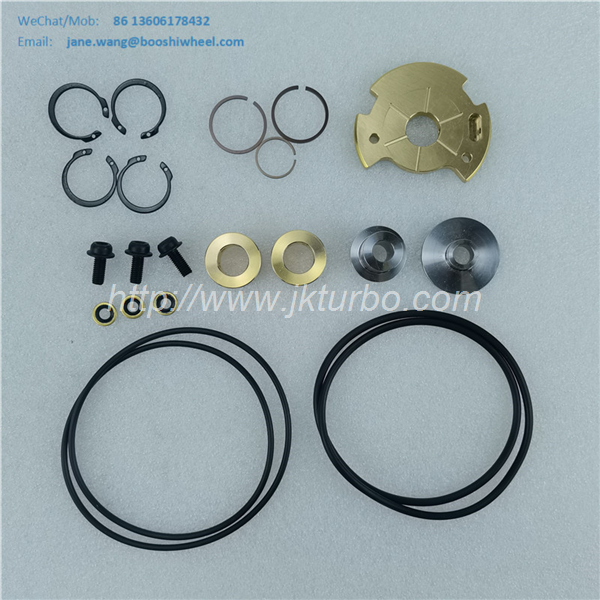

Repair Kit	(1154500755) $220.00 NEW IN STOCK
Actuator Kit	4034121 (3787580, 3787582, 4032244, 403412100, 403412100H, 4034121H, 23537677, E23537677, R23537677, 4034120H, AP80082, 4042309, 5352845, 5352847)(12 Volts)
Nozzle Ring Assembly	(1154500990)
Actuator Installation Kit	4031365 (20837312, 23537048, 403136500H, 4031365H)
Gasket Kit	3545576 (201049, 3519763) $15.35
Turbine Housing AR	VI EGR

Applications

2004-14 turbocharger for Detroit Diesel Engine Various, Fire Truck Series 60
