new ship marine turbo 5650-197-0000 56501970000 3886223 3801134

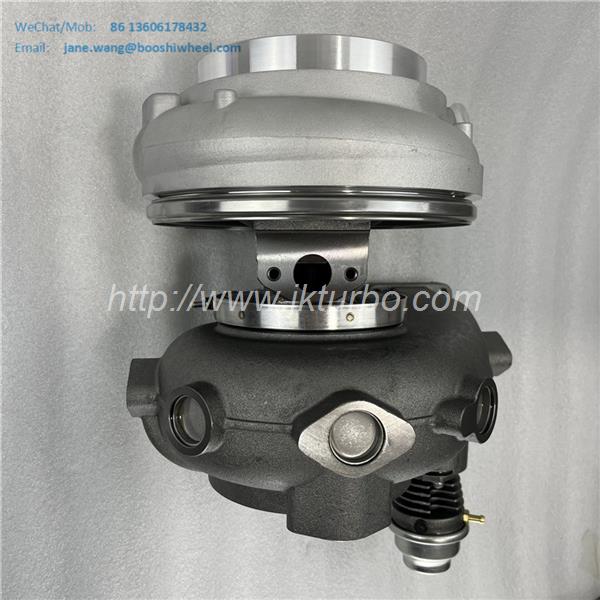

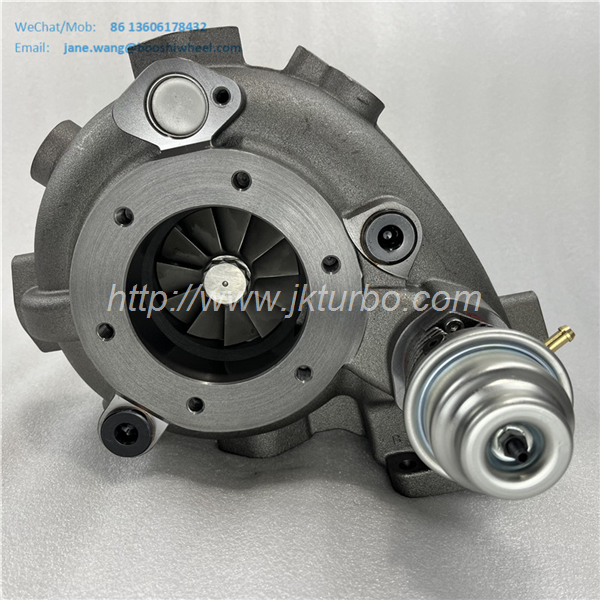

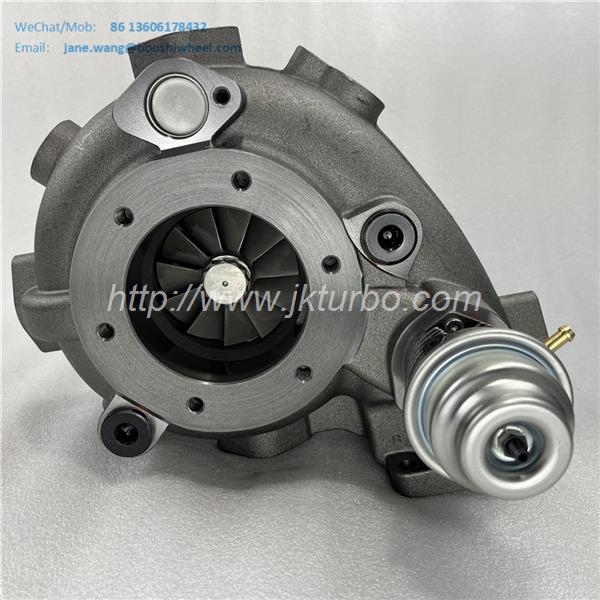

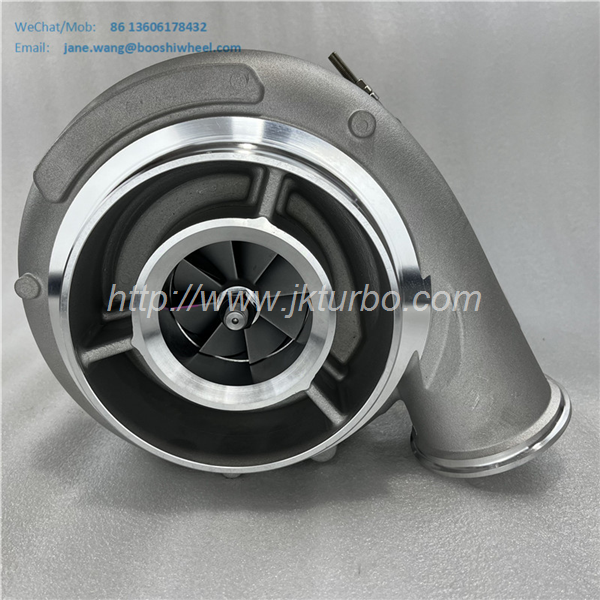

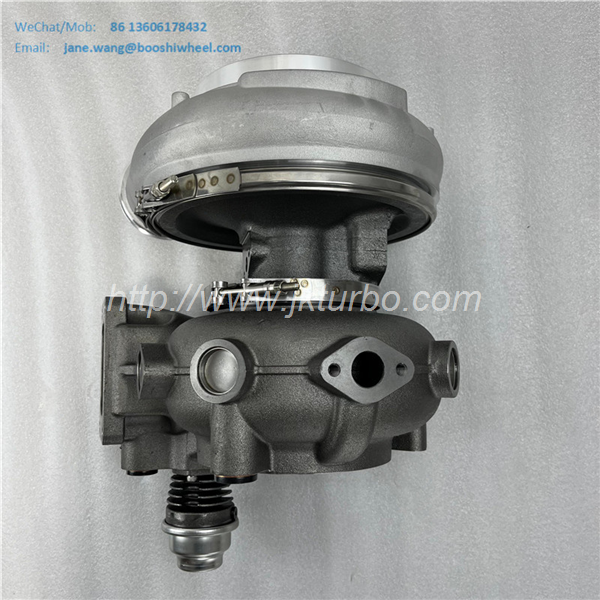

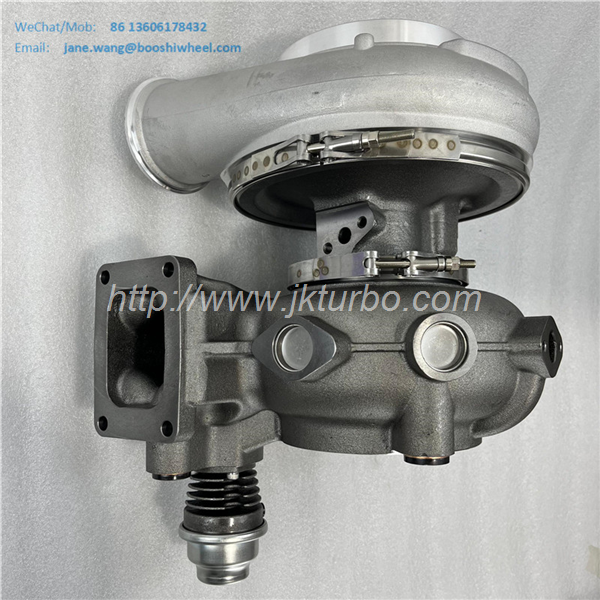

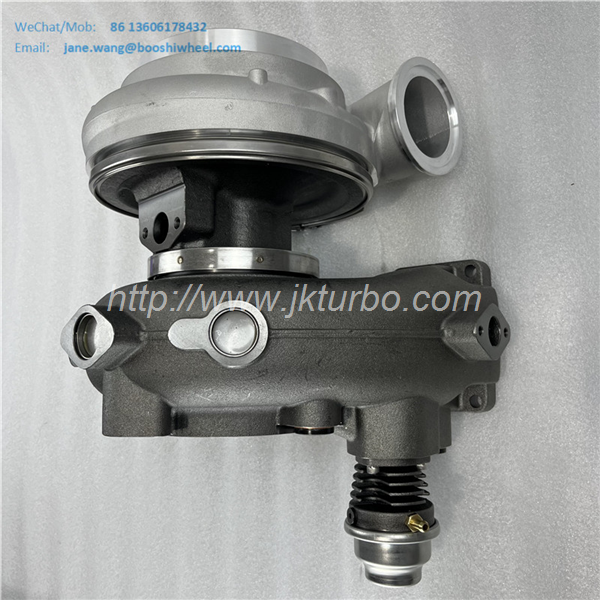

new model S500W turbocharger 56509880000 5650-988-0000 56501970000 56501988000 3886223 3801134 turbo for Ship Marine engine D12D-C MP

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	56509880000
Previous Part Number	5650-988-0000, 56501970000
OE number	3886223, 3801134
Year	2006-08
Description	Ship, Marine
Manufacturer Part Number	5650-197-0000, 56501970000
CHRA	NEW IN STOCK
Turbo Model	S500WG-110_55AABM/0.70HJ3
Engine Model	D12M, D12C-A MP, D12D-A MP, D12D-B MP, D12D-C MP
Engine Manufacturer	Volvo
Displacement	12.14L, 1214 ccm
KW	578/786
RPM Max	2300
Fuel	Diesel
Equip.	452164-5001S
Angle α (compressor housing)	108°
Angle β (turbine housing)	320°
Bearing Housing	317303 (Oil Cooled)
Turbine Wheel	318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) NEW IN STOCK
Comp. Wheel	317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) NEW IN STOCK
Back plate	317311 (171524) NEW IN STOCK
Heat shield Number	318032
Repair Kit	318416 NEW IN STOCK
Turbine Housing	water-cooled
Settings for waste gate	Pressure: 2.05 kPa Stroke: 4.0 mm
Turbo Mnt. Gasket	20784537
Gasket (turbine inlet)	470939 (417382, 20784537) (Stainless Steel)
Gasket oil inlet	420641 (1006177)
Gasket (oil outlet)	470993 (1027702)
NOTE	Inter-cooler
